• 15mm Angled thermostatic radiator valve ( TRV)
15mm Angled thermostatic radiator valve ( TRV) close left right

15mm Angled thermostatic radiator valve ( TRV)

Code: V21-066

Material: Brass

Finish: chrome plated

Place of origin: Ningbo,China

Product Description

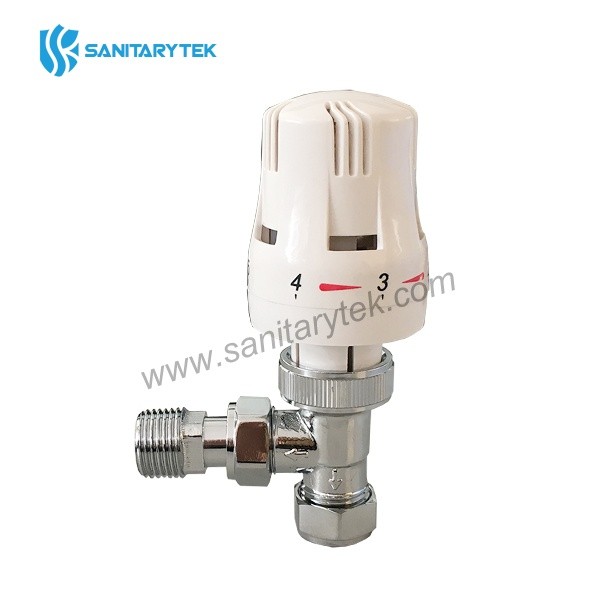

15mm Angled Thermostatic Radiator Valve ( TRV), with thermostatic head, chrome plated


• body in brass
• finishing: chrome plated
• connection thread for head: M30 x 1.5
• working temperatures : 0°C to +90°C
• maximum working pressure: 1.0 Mpa (10 bar)
• max. ambient temperature: 50°C
• scale of adjustment: 2 - 5
• adjustment range: up to 28°C
• valve connection: 1/2”
• working medium: water
• Threads: ISO 228


Code Size Finishing
V21-066 15mm x 1/2″ chrome
