Product Description

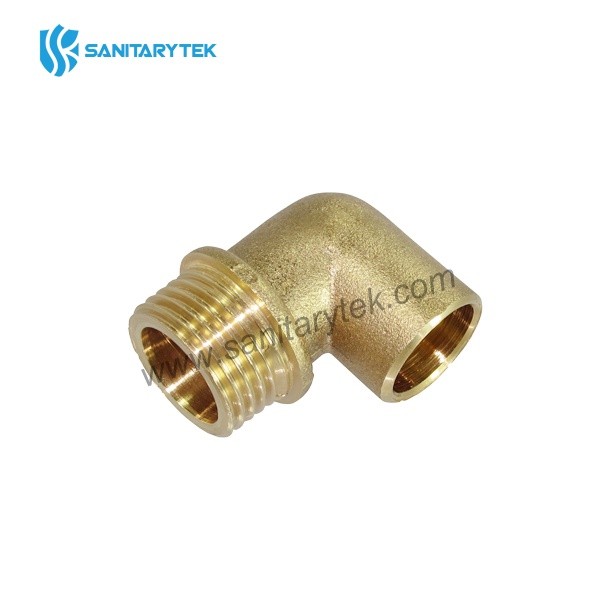

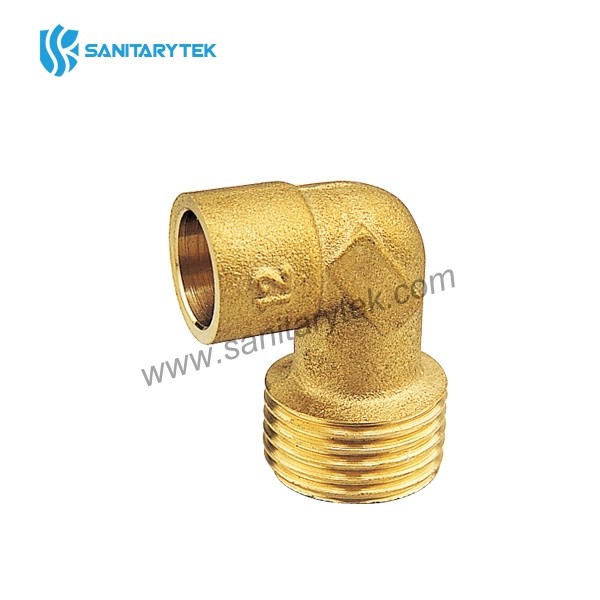

Brass Elbow Male for Solder
Brass male elbow to copper. It's a fitting made in brass, for copper tube, allowing a 90º change of direction. It has got one end male which allows a female thread connection and the other end is for copper pipe welding.
| Code | Size |
| F11-163 | 1/2"x 14, 16, 18 |
| F11-163 | 3/4"x 18, 22 |
• Suitable for hot and cold water, heating and chilled water systems.
• Max. pressure: 10 bar
• Operating temperature range: 0°C- 100°C
• Material: brass
• Finishing: yellow brass
• Thread: ISO 228
