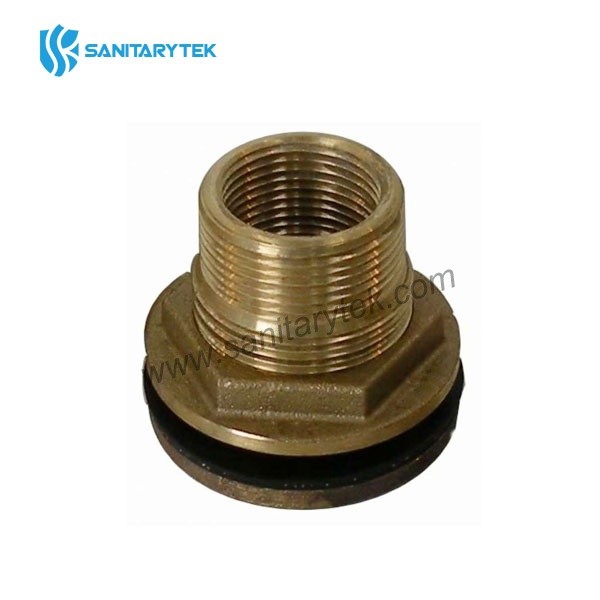

Brass fixed flange reverse thread – male / female
Code: F12-024
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
Brass Tank Outlet - Male/Female Threaded 50mm-20mm
The brass flanged outlet male/female thread is fitted to many tanks. Being made from brass ensures that fitting has many years or trouble free use. The outlet is generally connected to a ball valve which can then manage water coming from the tank at the water tank wall.
| Code | Size |
| F12-024 | 20mm Male / 15mm Female |
| F12-024 | 25mm Male / 20mm Female |
| F12-024 | 32mm Male / 25mm Female |
| F12-024 | 40mm Male / 32mm Female |
| F12-024 | 50mm Male / 40mm Female |
• All sizes have a male outside thread on one end and a female BSP thread the next size down on the inside of both ends. The locknut is a reverse thread tohelp prevent loosening of the fitting, so that it does up nice and tight on the thick rubber gasket and, when you are screwing on the ball valve, the fitting remains tight and waterproof.
• Included in the fitting are a backing nut and a washer. The washer seal ensures the tank does not leak.
• Finishing: yellow brass
• Threaded: BSP
