Eqaul tee fitting for multilayer
Code: F01-3209
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description

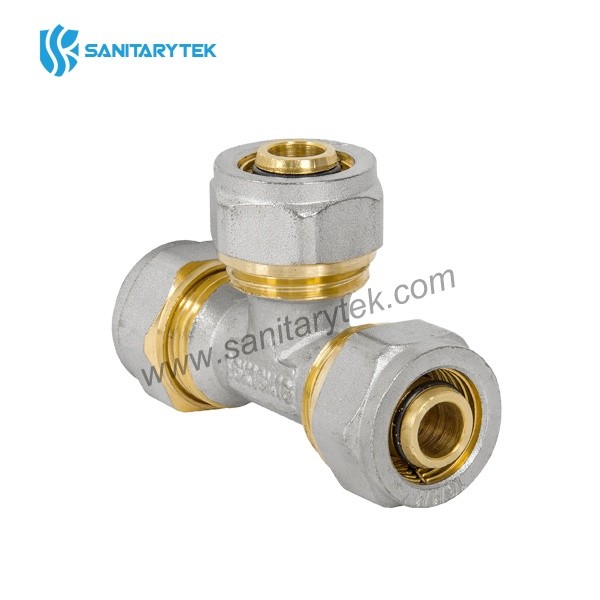

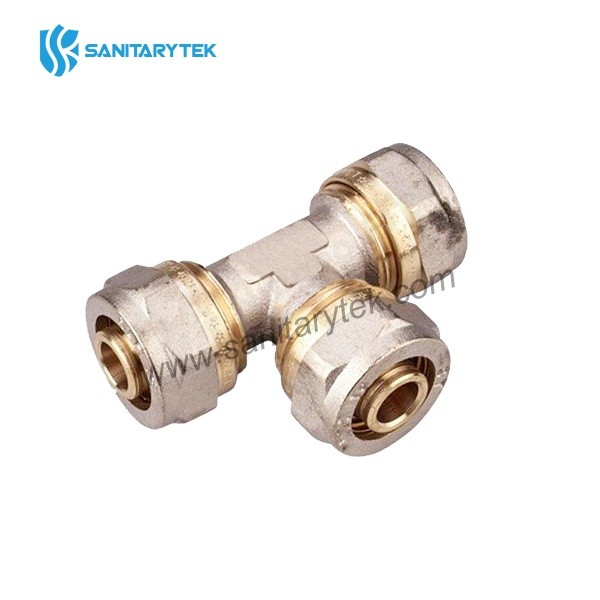

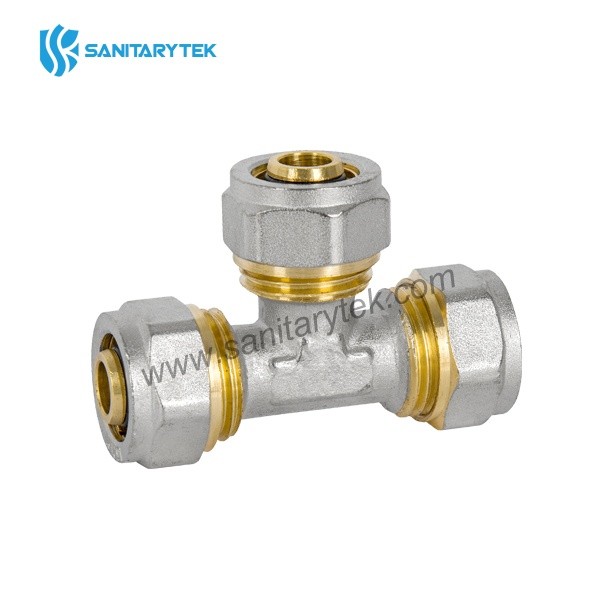

Equal Tee fitting for multilayer
Nickel-plated brass compression fittings for multilayer pipe. Fittings of this sort may be used in various fields, but they are mainly applied in drinking water distribution systems, sanitation systems, and heating systems.
| Code | Size |
| F01-3209 | 16 x 16 x 16 x 2,0 |
| F01-3209 | 18 x 18 x 18 x 2,0 |
| F01-3209 | 20 x 20 x 20 x 2,0 |
| F01-3209 | 26 x 26 x 26 x 3,0 |
| F01-3209 | 32 x 32 x 32 x 3,0 |
| -- | -- |
| F01-3209R | 16(2,0) x 16(2,0) x 20(2,0) |
| F01-3209R | 16(2,0) x 20(2,0) x 16(2,0) |
| F01-3209R | 20(2,0) x 16(2,0) x 20(2,0) |
| F01-3209R | 20(2,0) x 20(2,0) x 16(2,0) |
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated (thread surfaces are not nickel-plated)
• Threaded: ISO 228
Installation Instruction
• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
