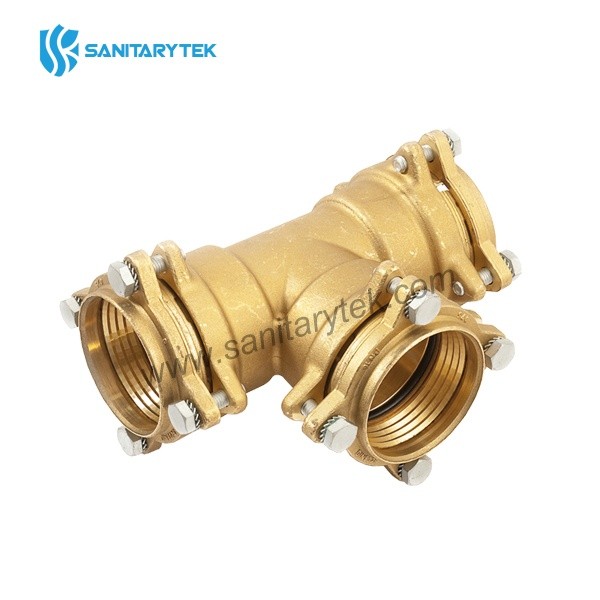

Equal tee coupler fitting for polyethylene
Code: F08-610
Material: brass
Place of origin: Ningbo, China
Sample: Support
Equal tee coupler fitting for polyethylene
Equal tee coupler in brass for polyethylene pipe of big format, is a quick connector for three polyethylene pipes.
Code | Size |
F08-610 | Ø75 x Ø75 x Ø75 |
F08-610 | Ø90 x Ø90 x Ø90 |
F08-610 | Ø110 x Ø110 x Ø110 |
• Body, flange and ring made of brass
• O-rings in EPDM
• Finishing: yellow brass
• Threaded: ISO 228
Brass Compression Flange Fitting PE Pipes Ø75-90-110
For the connection of polyethylene tube of large diameter Runner sanitary offers a range of brass compression fittings for polyethylene pipe. In this family you will find elbows, tees and straight unions in versions coupled - coupled for connecting tube with tube and coupled - thread. Similar to the “with internal compression nut” and “with external compressing nut” families, the typical applications are the build of connections in irrigation systems, potable water networks supply and also in conveyance systems of fuel gases.
The union with the polyethylene pipe follows the same system seen in the other two families of brass fittings for polyethylene (with external and internal compression nut). The particularity in this case is that the tightening is done by means of a clamping flange, which is screwed to the body of the fitting. This family is called Ø 75-90-110 in reference to the connecting tube diameter.
Item | Description | Materials |
1 | Body | brass |
2 | O ring | EPDM |
3 | Washer ring | brass |
4 | Compression (C-Ring) | brass |
5 | Nut | brass |
6 | Gasket + Bolt | SS304 |
- • Suitable for applications in plumbing system
- • Adaptable for polyethylene pipes (PE) joint
- • Body and nut made in hot forging brass
- • Available from 75mm to 110mm
- • Working temperature: -10°C to + 80°C
- • Max pressure PN: 16 bar
- • Surface treatment options: raw
- • Fastening threads: ISO228/1
