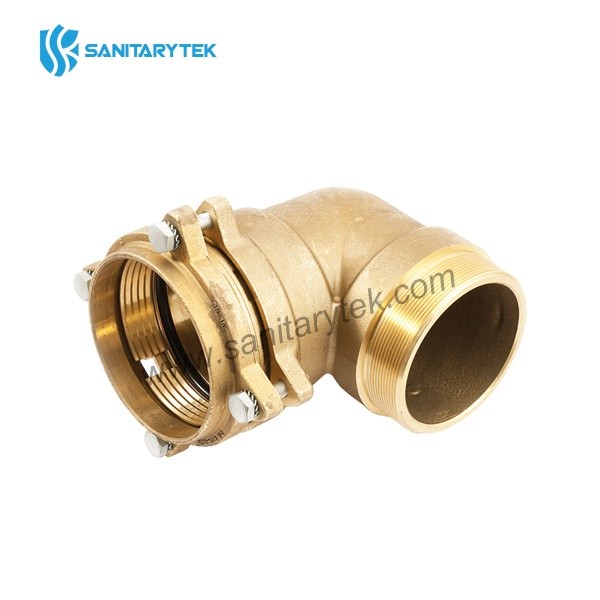

• Male elbow fitting with flange for polyethylene pipe
Male elbow fitting with flange for polyethylene pipe close left right

Male elbow fitting with flange for polyethylene pipe

Code: F08-606

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

Male Elbow Fitting M/PE


Male elbow coupler in brass for polyethylene pipe of big format, is a quick connector for polyethylene pipe and threaded accessory. Product range's dimensions are Ø 75-90-110 and thread from 2.½" to 4".

Code Size
F08-606 Ø75 x 2.1/2"
F08-606 Ø90 x 3"
F08-606 Ø110 x 4"

• Body, flange and ring made of brass
• O-rings in EPDM
• Finishing: yellow brass
• Threaded: ISO 228


Brass Compression Flange Fitting PE Pipes Ø75-90-110


For the connection of polyethylene tube of large diameter Runner sanitary offers a range of brass compression fittings for polyethylene pipe. In this family you will find elbows, tees and straight unions in versions coupled - coupled for connecting tube with tube and coupled - thread. Similar to the “with internal compression nut” and “with external compressing nut” families, the typical applications are the build of connections in irrigation systems, potable water networks supply and also in conveyance systems of fuel gases.
The union with the polyethylene pipe follows the same system seen in the other two families of brass fittings for polyethylene (with external and internal compression nut). The particularity in this case is that the tightening is done by means of a clamping flange, which is screwed to the body of the fitting. This family is called Ø 75-90-110 in reference to the connecting tube diameter.

Item Description Materials
1 Body brass
2 O ring EPDM
3 Washer ring brass
4 Compression (C-Ring) brass
5 Nut brass
6 Gasket + Bolt SS304
Features
  • • Suitable for applications in plumbing system
  • • Adaptable for polyethylene pipes (PE) joint
  • • Body and nut made in hot forging brass
  • • Available from 75mm to 110mm
  • • Working temperature: -10°C to + 80°C
  • • Max pressure PN: 16 bar
  • • Surface treatment options: raw
  • • Fastening threads: ISO228/1
