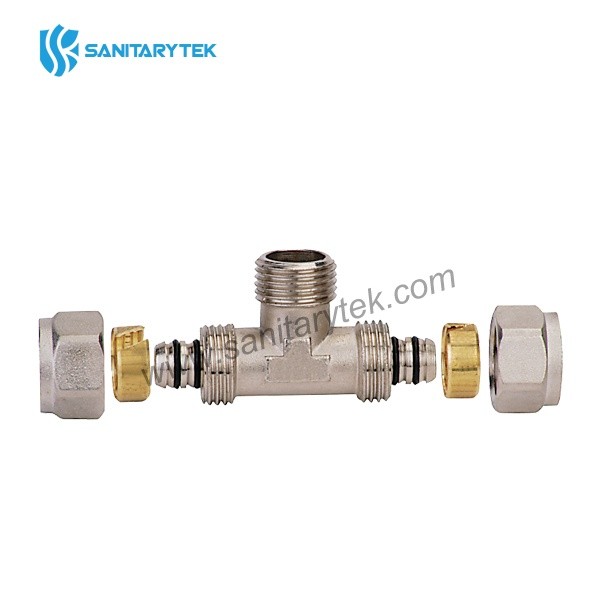

• Male tee fitting for multilayer pipe, nickel plated
Male tee fitting for multilayer pipe, nickel plated close left right

Male tee fitting for multilayer pipe, nickel plated

Code: F01-301

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

Male Tee Fitting for multilayer pipe


Brass compression fitting for polyethylene and multilayer pipes, with a branch male thread. It allows to join two polyethylene and multilayer pipes, with a branch by the side with external thread.

Code Size
F01-301 16 x1/2"x16 x 2,0
F01-301 18x1/2"x18 x 2,0
F01-301 20x1/2"x20 x 2,0
F01-301 20x3/4"x20 x 2,0
F01-301 26x3/4"x26 x 3,0
F01-301 26x1"x26 x 3,0
F01-301 32x1"x32 x 3,0

• Male tee fitting
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated
• Threaded: ISO 228


Installation Instruction


• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
