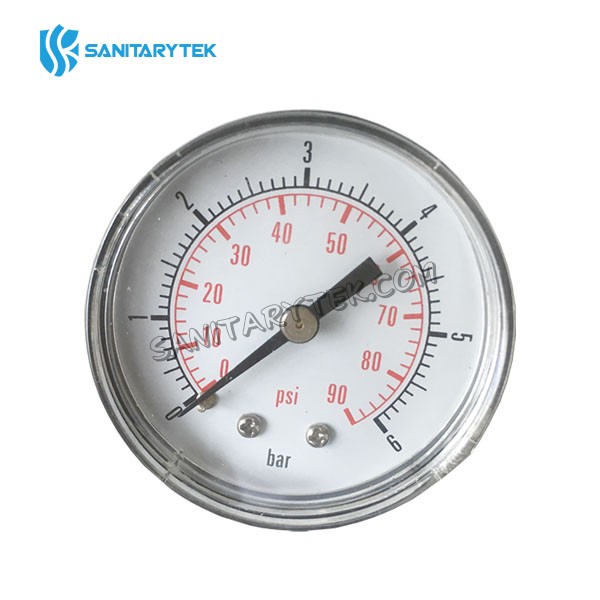

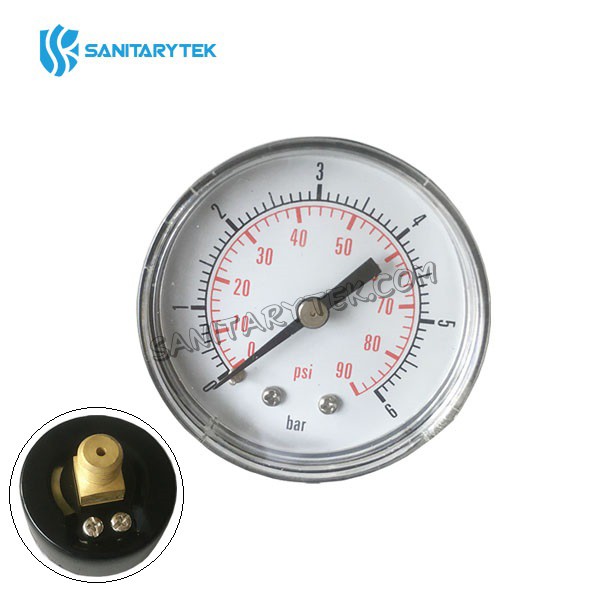

Pressure gauge with back connection
Code: GP404K
Casing: black steel
Cover: scratch-resistant plastic
Range: 0-4 bar, 0-6 bar, 0-10 bar
Connection: 1/4"
MOQ: 2000 pcs
Product Description
Pressure Gauge with back connection
| Code | Range | Connection | Dial dia. |
| GP404K | 0-4 bar | 1/8" | 40mm |
| GP404K | 0-6 bar | 1/4" | 50mm |
| GP404K | 0-10 bar | 1/4" | 63mm |
• Casing: painted steel (black)
• Cover: scratch-resistant plastic
• Dial: powder-coated aluminium
• BACK connection
• Range (bar): 0-4 bar, 0-6 bar, 0-10 bar
• Dial diameter: 40mm, 50mm, 63mm
• Connection: 1/8", 1/4" - brass
• Thread: BSP, BSPT, NPT
