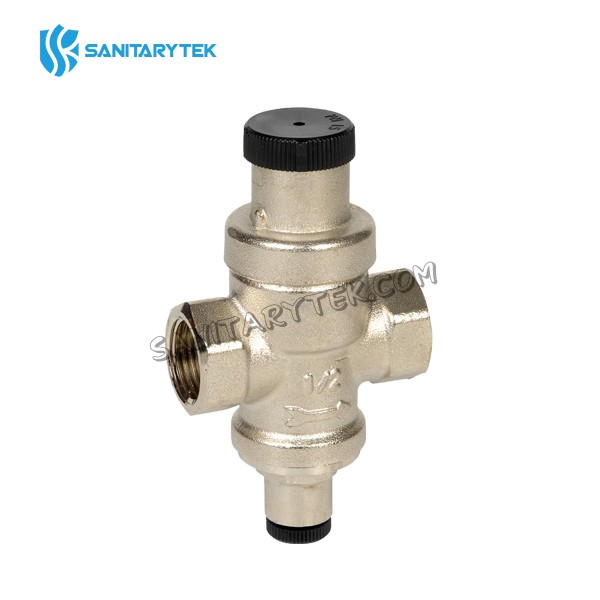

• Pressure reducer with female connections and manometer holder, nickel plated
Pressure reducer with female connections and manometer holder, nickel plated close left right

Pressure reducer with female connections and manometer holder, nickel plated

Code: V21-3105N

Material: brass

Color: nickel plated

MOQ: 1000 pcs

Place of origin: Ningbo, China

Product Description

Pressure Reducing Valve with Female Connection and manometer holder, nickel plated


A pressure reducer is a valve that controls the pressure of a fluid or gas to a desired value. It can be used for gases and liquids. is used to control valve that reduces the input pressure of a fluid or gas to a desired value.

• Pressure reducer with piston, female connection and 1/4" pressure gauge connection.
• Body in forged brass
• Finishing: nickel plated
• Max working pressure: 16bar
• Max working temperature: 80°C.
• Pre-setting: 3bar
• Outlet pressure range: 1 - 4 bar
• Manometer connection: 1/4"
• Fluids: water
• Threads: ISO 228

Code Size
V21-3105N 1/2"
V21-3105N 3/4"
