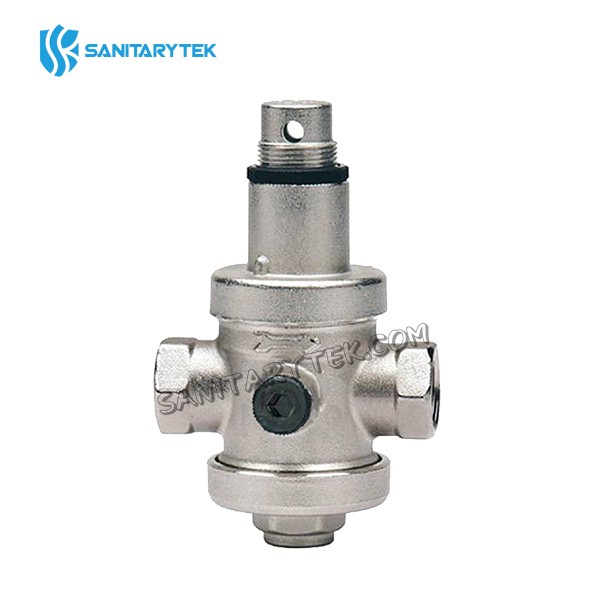

Pressure reducing valve female, manometer holder, nickel plated
Code: V21-3101N
Material: brass
Finish: nickel plated
Size: 1/2"-2"
Connection: Female/female threads
Place of origin: Ningbo, China
Product Description
Pressure Reduced Valve FF connection, manometer holder, nickel plated
| Code | Size |
| V21-3101N | 1/2" |
| V21-3101N | 3/4" |
| V21-3101N | 1" |
| V21-3101N | 11/4" |
| V21-3101N | 11/2" |
| V21-3101N | 2" |
• Pressure reducer with piston and clearing house, female connections and manometer holder
• Body in forged brass
• Finishing: nickel plated
• Stainless steel internal components
• Max. inlet pressure: 25 bar.
• Max working temperature: 80°C
• Pre-setting: 3bar
• Outlet pressure range: 1 - 6 bar (1,5bar – 6bar size >1")
• Manometer connection: 1/4"
• Fluids: water
• Threads: ISO 228
