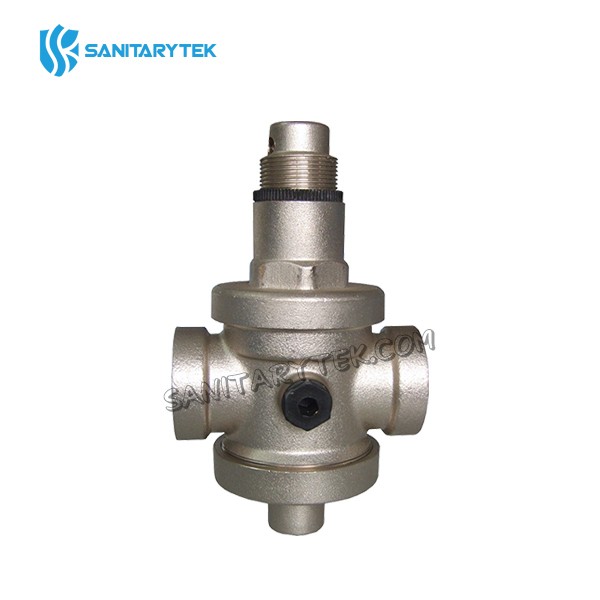

Water pressure reducing valve with female connection and manometer holder
Code: V21-3102N
Material: brass nickel plated
Size: 1/2"-2"
Connection: female-female
MOQ: 500 pcs
Place of origin: China
Product Description
Water Pressure Reducing Valve with female connection, nickel plated
| Code | Size |
| V21-3102N | 1/2" |
| V21-3102N | 3/4" |
| V21-3102N | 1" |
| V21-3102N | 11/4" |
| V21-3102N | 11/2" |
| V21-3102N | 2" |
• Body in forged brass
• Finishing: nickel plated
• Stainless steel internal components
• Max. inlet pressure: 25 bar.
• Max working temperature: 80°C
• Pre-setting: 3bar
• Outlet pressure range: 0.5 - 6 bar (1,5bar – 6bar size >1")
• with 1/4" pressure gauge connection
• Fluids: water
• Threads: ISO 228
