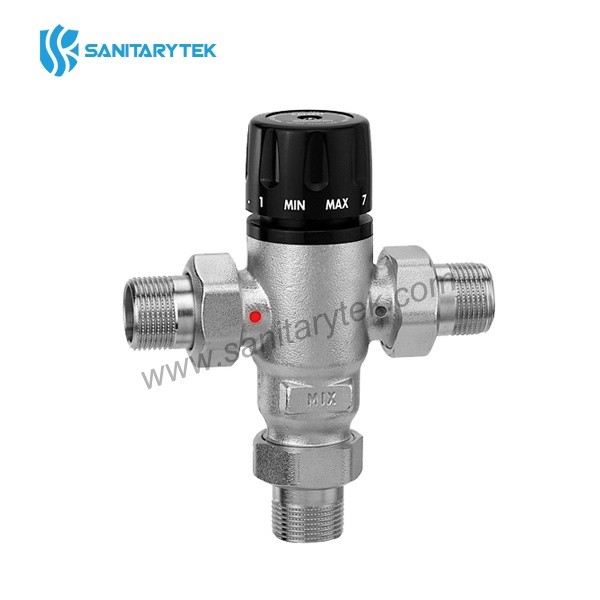

Adjustable thermostatic mixing valve with male pipe union
Code: V21-3301
Material: brass
Finishing: chrome
MOQ: 1000 pcs
Place of origin: Ningbo, China
Product Description
Termostatic mixing valve with male pipe union, with or without check valve
Code | Size | Finishing |
V21-3301 | 1/2" | nickel plated |
V21-3301 | 3/4" | nickel plated |
V21-3301 | 1" | nickel plated |

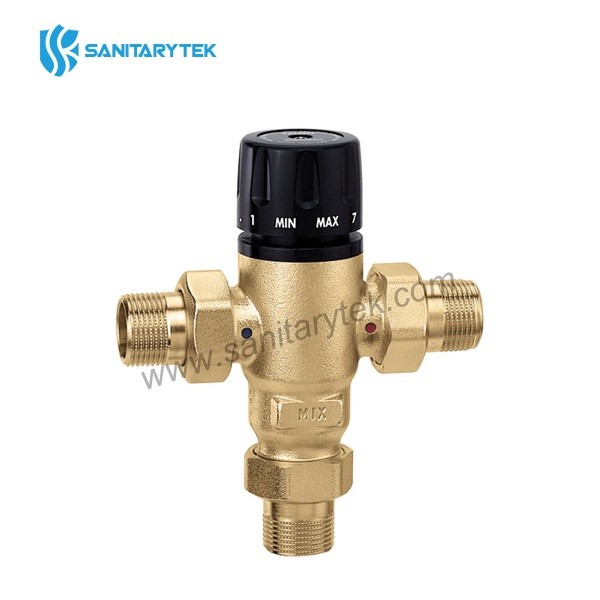

V21-3301Y | 1/2" | yellow |
V21-3301Y | 3/4" | yellow |
V21-3301Y | 1" | yellow |
• Body in forged brass
• Minimum working pressure: 2 bar
• maximum working pressure: 10 bar
• Min inlet cold water temperature: 4°C
• Max inlet hot water temperature: 85°C
• Mixed water temperature range: 27°C-55°C
• Fluids: water or glycol solutions (max 30%)
• Finishing: chrome plated / yellow brass
• thread: ISO228
Thermostatic mixing valve with pipe union and removable cartridge. The main function is to maintain constant to a set value the temperature of the mixed water, regardless the inlet hot and cold water temperature and pressure. Anti-burning function included in case of unexpeted interruption of the inlet cold water supply, avoiding potentials burns and possibility to block the mixed water temperature.
