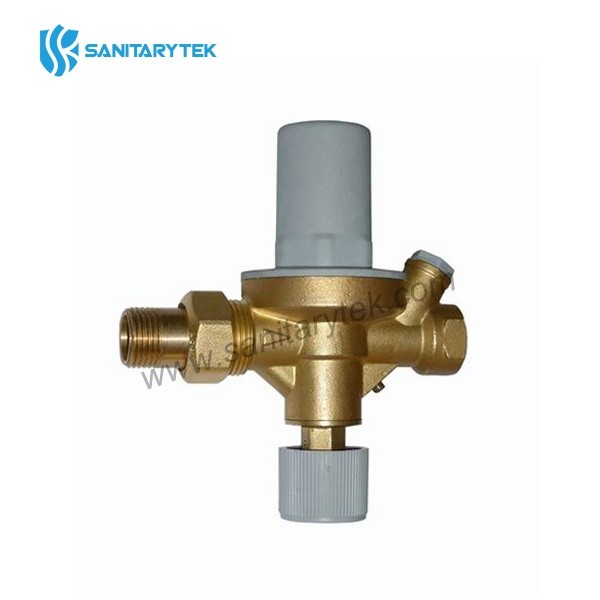

Automatic filling valve

Code: V21-3202

Material: brass

Finishing: yellow brass

MOQ: 1000 pcs

Place of origin: Ningbo, China

Send Email

Product Description

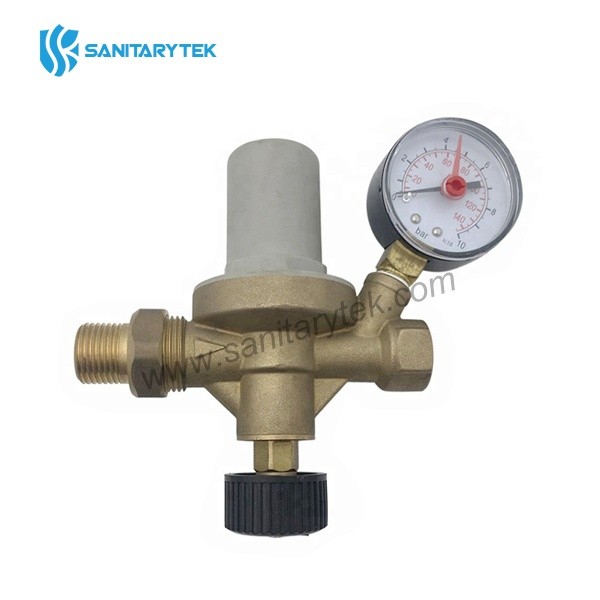

Automatic Filling Valve, with manometer holder

Code	Size
V21-3102	1/2"

• Body in forged brass
• Finishing: yellow brass
• maximum working pressure: 10 bar
• working temperature: 0°C to +80°C
• outlet pressure can be adjusted between 0.5-4 barr
• 1/4” pressure gauge connection with union

Automatic filling unit with manometer holder. Control, regulation and automatic pressure restoration in closed heating circuit.
