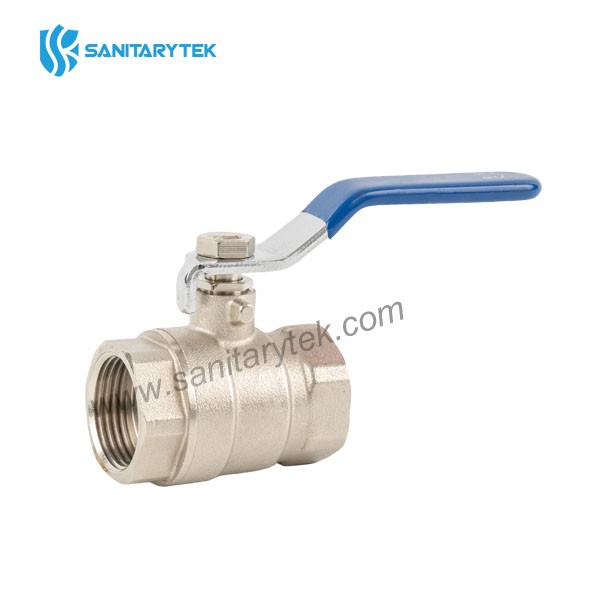

Brass ball valve F/F with blue steel flat handle
Code: V20-011B01
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
Brass ball Valve forged, FXF, with blue steel flat handle
• Body in nickel-plated brass.• female-female
• With gland, PTFE seat and gland packing.
• Blue flat lever handle in steel (red optional).
• Working temperatures: -10°C to +120°C.
• Working media: water
• Thread: ISO228.
• Ball valve, designed with lever is made of high quality brass with internal thread by European standards ISO 228 and is designed for exposed residential and commercial plumbing inside or outside buildings. The valves can be used only to fully open or close the flow medium. The cock is manually operated, straight full flow and suitable for water with an operating temperature max. 120 degrees Celsius. Ball seals is made from Teflon.
Code | Size |
V20-011B01 | 1/2" |
V20-011B01 | 3/4" |
V20-011B01 | 1" |
V20-011B01 | 1.1/4" |
V20-011B01 | 1.1/2" |
