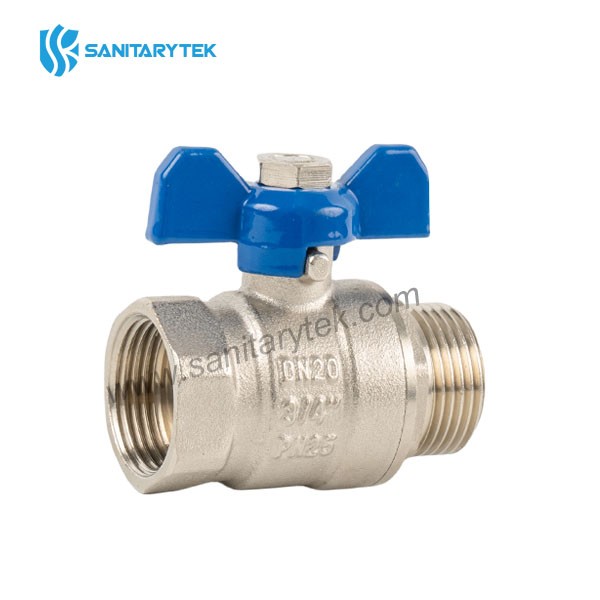

Brass ball valve M/F - blue aluminium butterfly handle
Code: V20-011B04
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
Brass ball valve M/F - blue aluminium butterfly handle
• Body in nickel-plated brass.• male-female
• With gland, PTFE seat and gland packing.

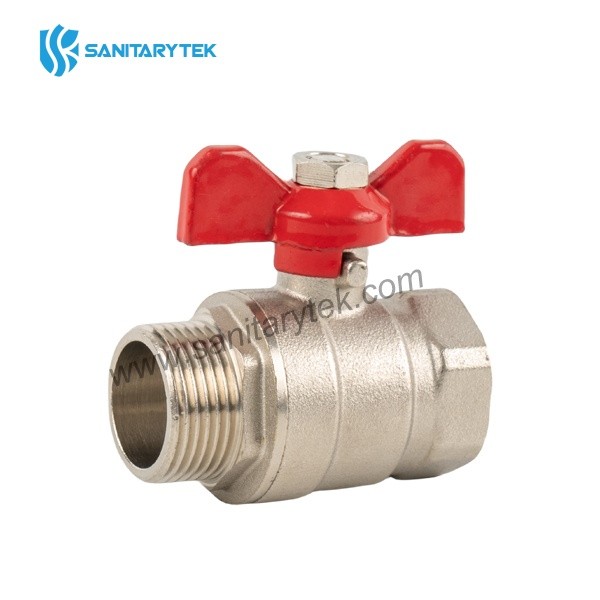

• Blue aluminium butterfly handle (red optional).
• Working temperatures: -10°C to +120°C.
• Working media: water
• Thread: ISO228
• The butterfly cock is made of high quality nickel-plated brass with internal and external threads according to European standards ISO 228 and is designed for indoor and commercial indoor or outdoor installations indoors or outdoors. The cocks can only be used to fully open or close the media flow. The cock is manually operated, direct, full flow and suitable for water, air and non-abrasive and non-aggressive liquids with a maximum pressure of up to 30 bar and an operating temperature of up to 120°C. The ball seal is Teflon.
Code | Size |
V20-011B04 | 1/2" |
V20-011B04 | 3/4" |
V20-011B04 | 1" |
