• Brass ball valve, female thread, with a steel lever, full bore
Brass ball valve, female thread, with a steel lever, full bore close left right

Brass ball valve, female thread, with a steel lever, full bore

Code: V18-501

Material: brass

Color: nickel plated

Connection Type: female x female

Place of origin: China

Product Description

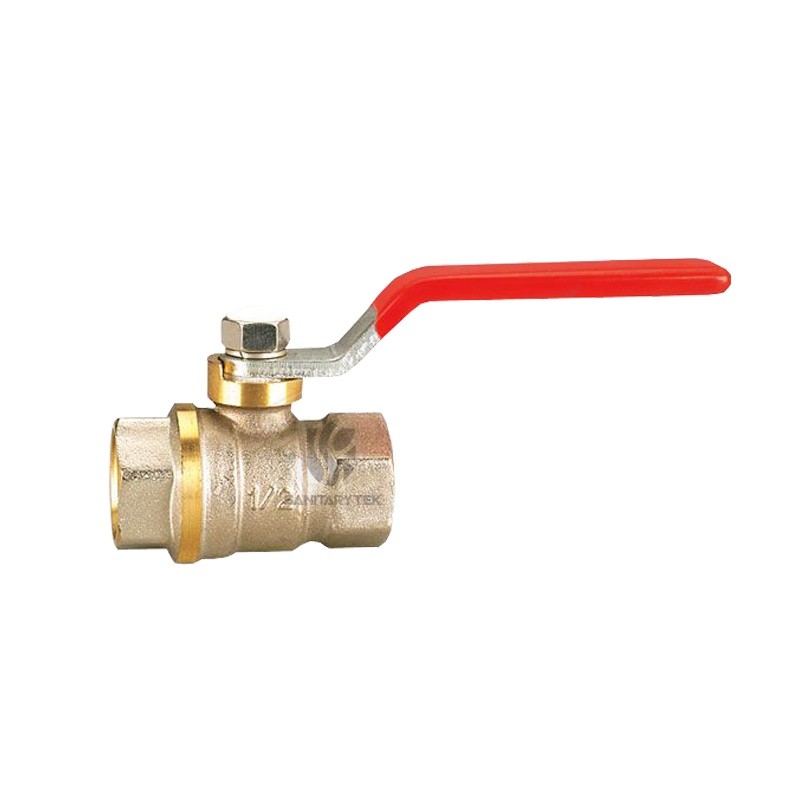

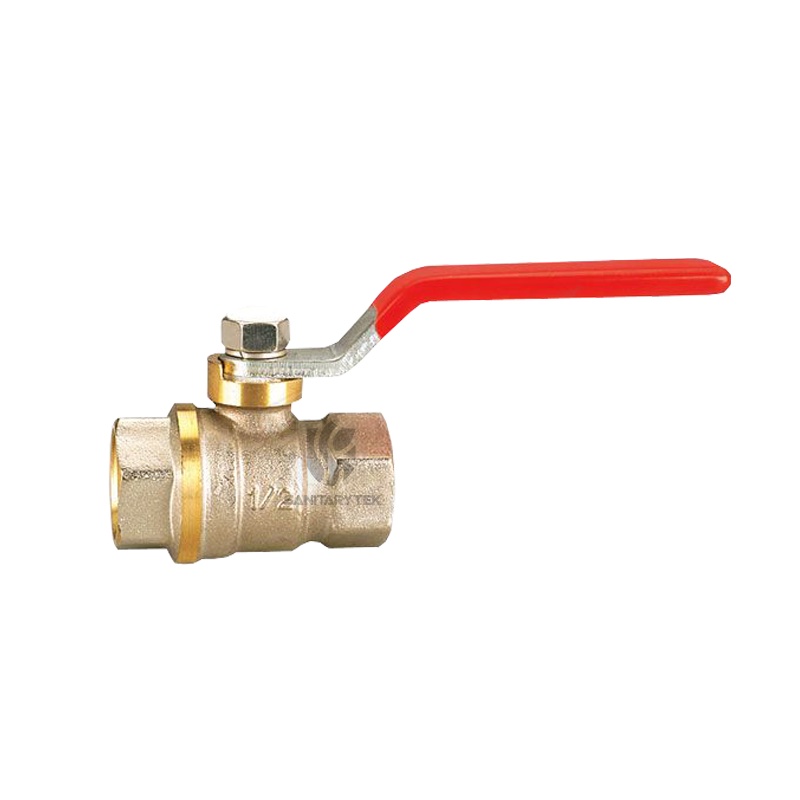

Brass Ball Valve, Female Thread, with a Steel Flat Lever


This brass ball valve with internal threading uses a metal ball with a hole bored through the center, sandwiched between two seats to control flow. Can be used in residential, commercial plumbing, water wells and many other applications.

• Body in nickel plated brass
• female - female
• ball material: brass, chrome plated, polished
• ball sealing: PTFE
• flat lever handle in steel, red color
• working media: water
• Thread: ISO228


Code Size Des
V18-501 1/2" --
V18-501 3/4" --
V18-501 1" --
V18-501 1-1/4" --
V18-501 1-1/2" --
V18-501 2" --

ball valve
