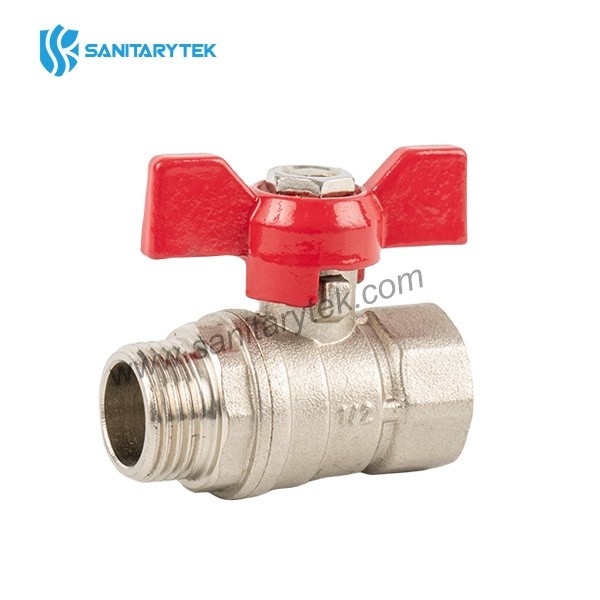

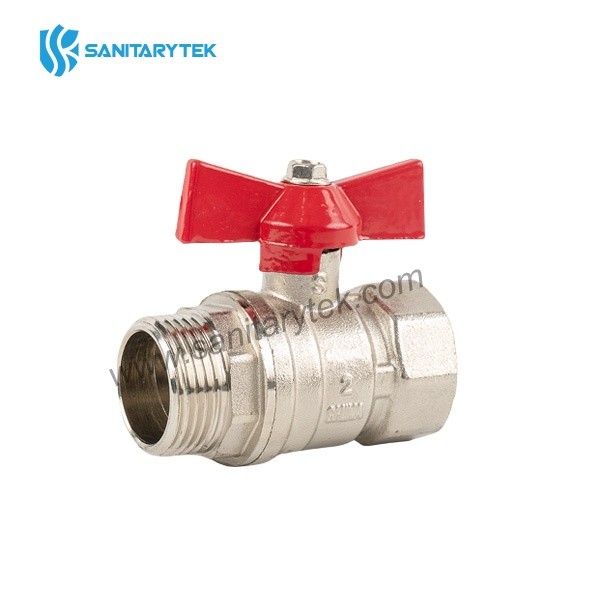

Brass ball valve male/female with red butterfly handle
Code: V20-010F01
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
• Body in nickel plated brass• male-female
• with gland and packing nut, PTFE seat
• Aluminium butterfly handle in red or blue
• nominal operating pressure: 20 bar
• working temperatures : -10°C to +100°C
• working media: water
• Thread: ISO228
• The ball valve is used as a stop valve on pipelines for water supply, heating, compressed air. The use of ball valves as control valves is not allowed. Ball valve can be supplied with butterfly pens in red or blue.
Code | Size |
V20-010F01 | 1/2" |
V20-010F01 | 3/4" |
V20-010F01 | 1" |
