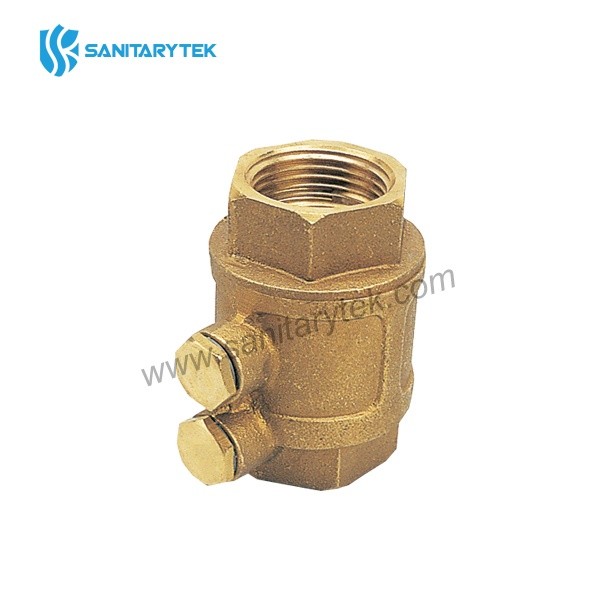

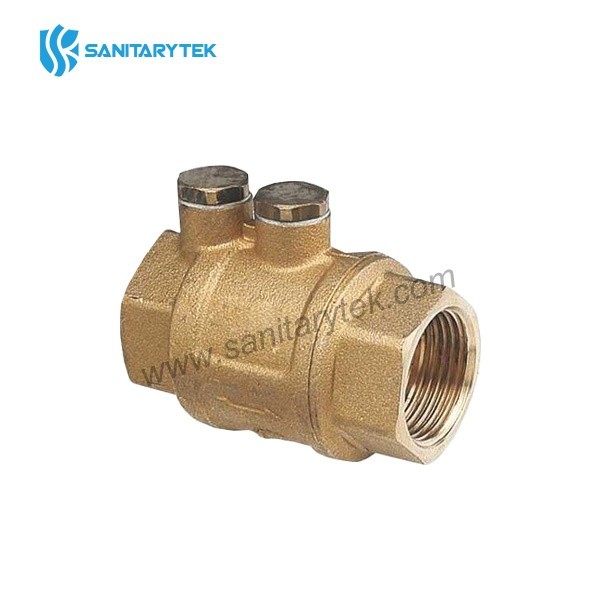

Brass check valve with double purge
Code: V24-007
Material: brass
Color: yellow brass
Place of origin: Ningbo, China
Sample: Support
Product Description

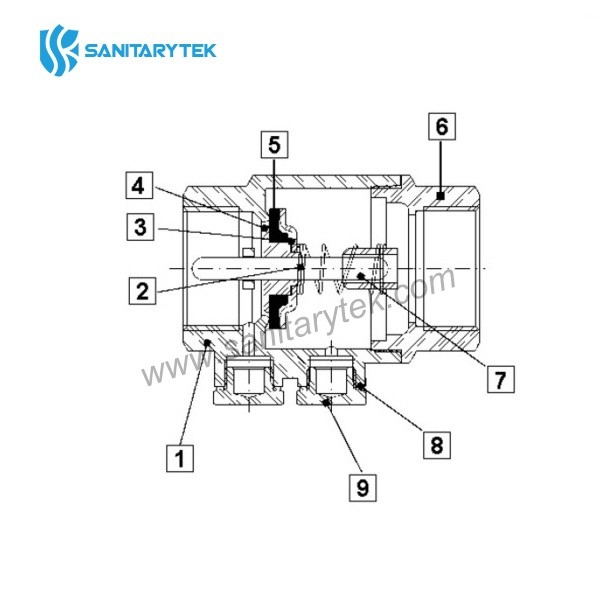

Brass Multi Positions Check Valve - Stainless Steel Lift Type Check Valve - Double Purge
• Plate in stainless steel
• Spring: stainless steel
• Outlet plugs in brass, thread 1/4”
• Media: water
• Working temperature: -10°C - 100°C
• Threaded: ISO 228
• Applications: Suitable for domestic water services, heating, air-conditioning plants and compressed air systems
| Code | Size |
| V24-007 | 3/8" |
| V24-007 | 1/2" |
| V24-007 | 3/4" |
| V24-007 | 1" |
| V24-007 | 1.1/4" |
| V24-007 | 1.1/2" |
| V24-007 | 2" |
