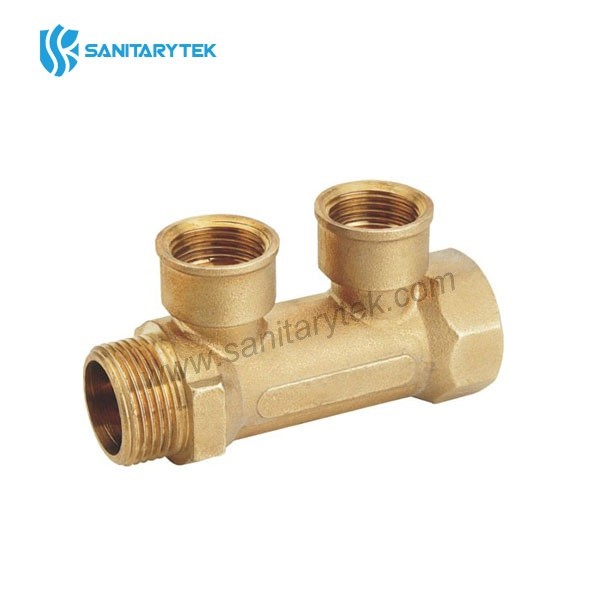

Brass linear manifolds M/F with 1/2 female connection
Code: RF207
Material: brass
Place of origin: Ningbo, China
Product Description
Brass linear manifolds M/F with 1/2 female connection
• Linear manifolds are suitable for any kind of sanitary installation such as domestic, commercial, industry and farming. They can be used for heating and sanitary installations with any type of non-corrosive fluid. Manifolds configuration allows the realization of hot and/or cold circuits in parallel.• Centres distance: 36 mm
• Max working temperature: 110°C
• Max working pressure: 10bar
• Body in yelow brass, Available on request in nickel plated brass
• Threads: ISO 228
Code | Size |
RF207 | 3/4"x1/2" - 2-ways |
RF207 | 3/4"x1/2" - 3-ways |
RF207 | 3/4"x1/2" - 4-ways |
RF207 | 3/4"x1/2" - 5-ways |
RF207 | 1"x1/2" - 2-ways |
RF207 | 1"x1/2" - 3-ways |
RF207 | 1"x1/2" - 4-ways |
RF207 | 1"x1/2" - 5-ways |
