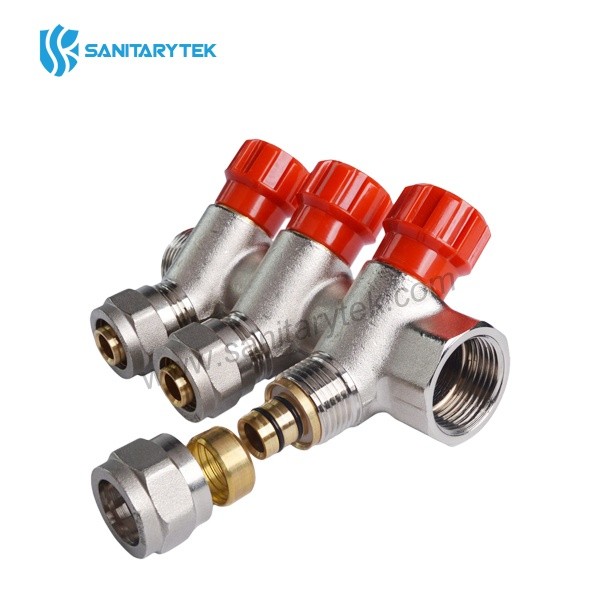

Brass manifold with stop cock and 16 mm Pex-Al-Pex adaptor
Code: RF202
Material: brass
Place of origin: Ningbo, China
Product Description
Brass manifold with stop valves and 1/2"x16 multilayer pipe adaptor
• Manifolds with stop cocks made of brass with Ø16 multilayer pipe ways• Supplied blue / red handwheel
• Max working temperature: 110°C
• Max working pressure: 10bar
• Body in nickel-plated brass
• Centres distance: 36 mm
• Threads: ISO 228
Code | Size |
RF202 | 3/4"x1/2"x16/2.0 - 2-ways |
RF202 | 3/4"x1/2"x16/2.0 - 3-ways |
RF202 | 3/4"x1/2"x16/2.0 - 4-ways |
RF202 | 1"x1/2"x16/2.0 - 2-ways |
RF202 | 1"x1/2"x16/2.0 - 2-ways |
RF202 | 1"x1/2"x16/2.0 - 2-ways |
