Built-in solder ball valve with hidden handle
Code: V20-054
Body material: brass
Color: natural brass
Connection: solder x solder
Place of origin: China
Product Description

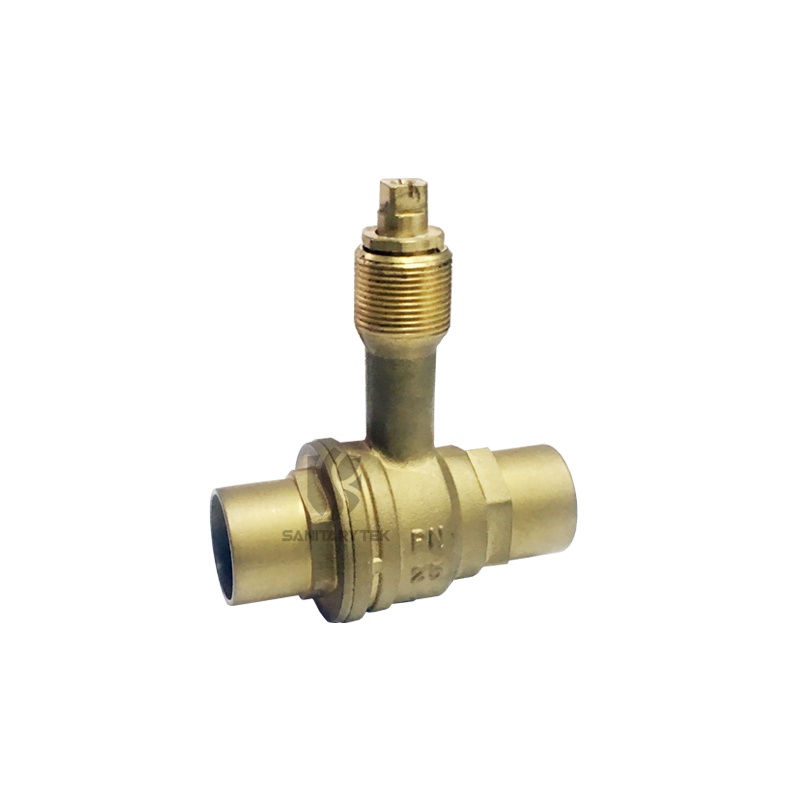

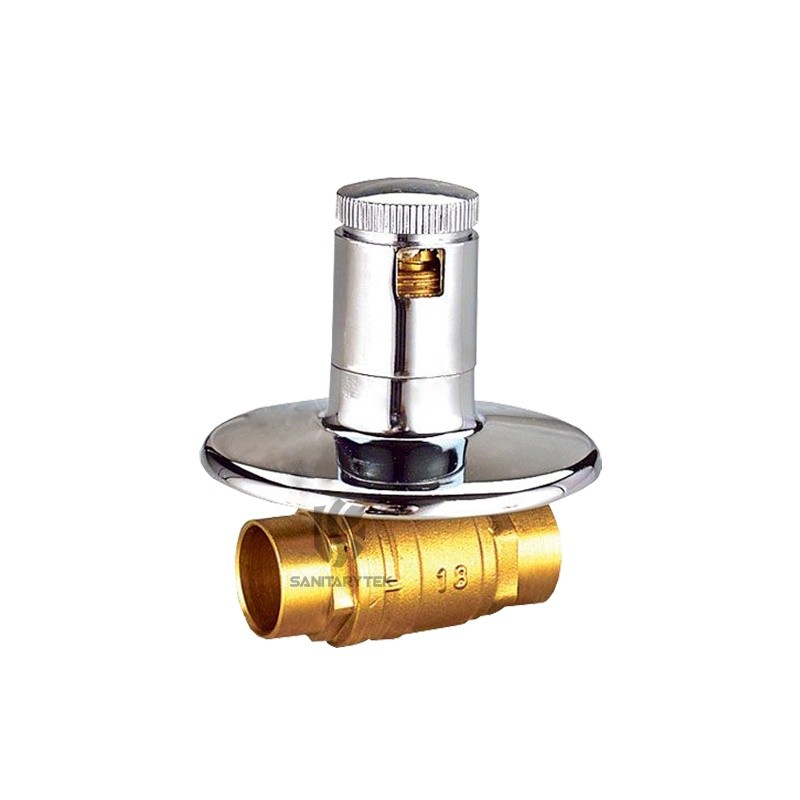

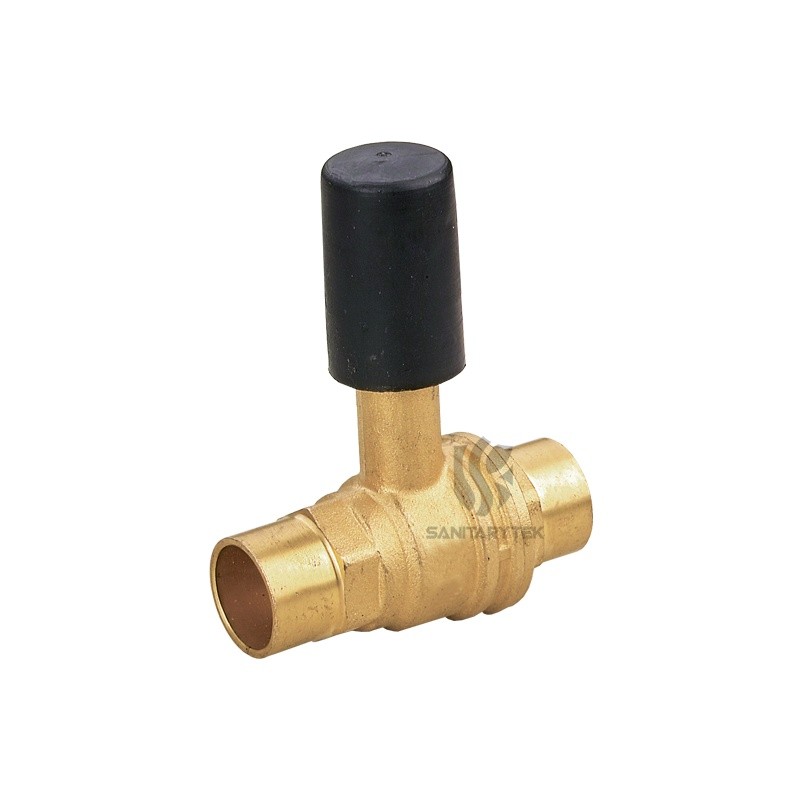

Built-in Solder Ball Valve with Hidden Handle
High-quality Built-in ball valve for flush mounting with solder connections for copper pipe. Reinforced monobloc body and connection nut in brass manufactured.
• Body in forged brass
• Hidden handle in chrome-plated
• Max working pressure: 16 bar
• Working temperature: 0°C to 100°C
• working media: water
• Thread: ISO 228
| Code | Size | Finish |
| V20-054 | 15mm | natural brass |
| V20-054 | 18mm | natural brass |
| V20-054 | 22mm | natural brass |
