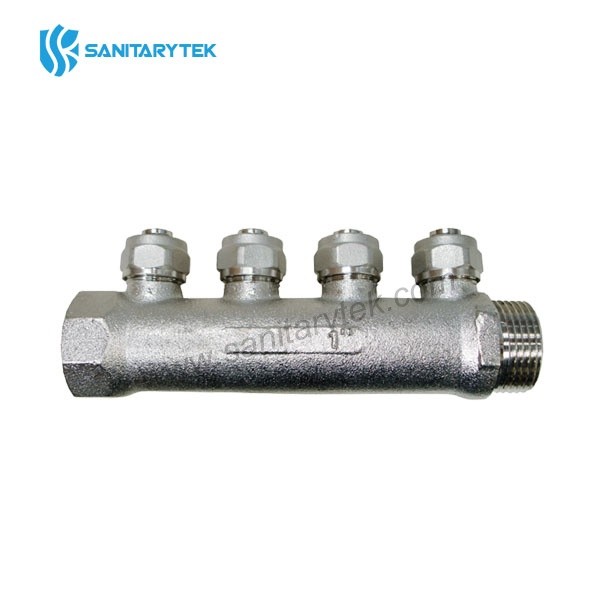

Linear manifolds M/F with compression exits for multilayer pipe
Code: RF208
Material: brass
Place of origin: Ningbo, China
Product Description
Linear manifolds M/F with compression exits for multilayer pipe
• Male-female manifold, it is an accessory used for splitting a flow into different branches for a distributor system and used with polyethylene and multilayer pipes. It consists of a cylindrical body, with two ends one male and female thread and two or more lateral exits. It can be also used to take the water flow from different sources. This manifold is normally used for sanitary water distribution or central heating systems.• Centres distance: 36 mm
• Max working temperature: 110°C
• Max working pressure: 10bar
• Body in nickel plated brass, Available on request in yellow brass
• Threads: ISO 228
| Code | Size |
| RF208 | 3/4"x16/2.0 - 2-ways |
| RF208 | 3/4"x16/2.0 - 3-ways |
| RF208 | 3/4"x16/2.0 - 4-ways |
| RF208 | 3/4"x16/2.0 - 5-ways |
| RF208 | 1"x16/2.0 - 2-ways |
| RF208 | 1"x16/2.0 - 3-ways |
| RF208 | 1"x16/2.0 - 4-ways |
| RF208 | 1"x16/2.0 - 5-ways |
