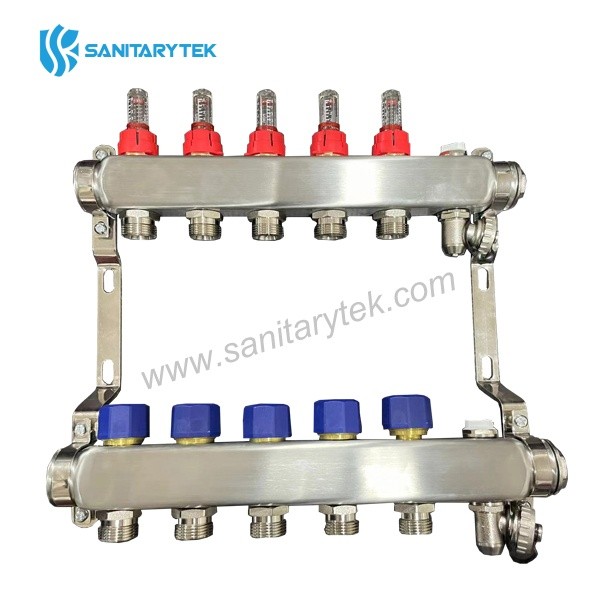

Pre-assembled stainless steel manifold with flowmeters, air vent and drain cock
Code: RF324
Material: stainless steel
Place of origin: Ningbo, China
Product Description
Pre-assembled stainless steel manifold with flowmeters, air vent and drain cock
| Code | Manifold 1" | Outlet |
| RF324 | 2 way | 3/4" |
| RF324 | 3 way | 3/4" |
| RF324 | 4 way | 3/4" |
| RF324 | 5 way | 3/4" |
| RF324 | 6 way | 3/4" |
| RF324 | 7 way | 3/4" |
| RF324 | 8 way | 3/4" |
| RF324 | 9 way | 3/4" |
| RF324 | 10 way | 3/4" |
| RF324 | 11 way | 3/4" |
| RF324 | 12 way | 3/4" |
Pre-assembled manifold in stainless steel, consisting of supply manifold with regulation and balancing flowmeters and return manifold with thermostatic screws complete with protection cap. End parts complete with manual air vent and drain valve. Outlets with connections 3/4" euroconus.
- 1 return manifold in stainless steel with shut-off valves preset for electrothermal actuators
- 1 flow manifold in stainless steel with flow meters
- set of steel brackets

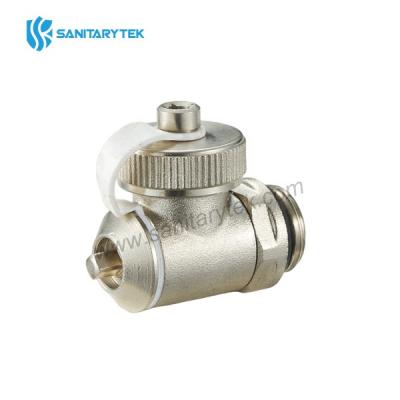

- G1/2 drain valve, 2 pcs
- G1/2 air vent valve, 2 pcs
- G1 brass plugs, 2 pcs
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• G1/2 x G3/4 nipples
• thread: ISO228
