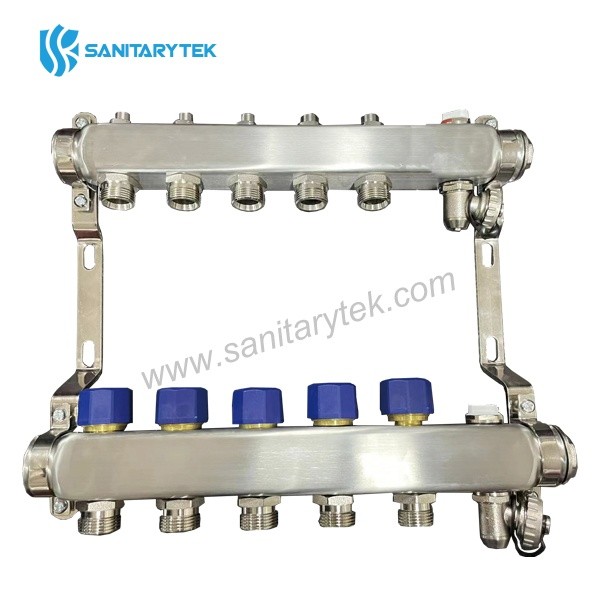

Pre-assembled stainless steel manifold with lockshield, air vent and drain cock
Code: RF325
Material: stainless steel
Place of origin: Ningbo, China
Product Description
Pre-assembled stainless steel manifold with lockshield, air vent and drain cock
| Code | Manifold 1" | Outlet |
| RF325 | 2 way | 3/4" |
| RF325 | 3 way | 3/4" |
| RF325 | 4 way | 3/4" |
| RF325 | 5 way | 3/4" |
| RF325 | 6 way | 3/4" |
| RF325 | 7 way | 3/4" |
| RF325 | 8 way | 3/4" |
| RF325 | 9 way | 3/4" |
| RF325 | 10 way | 3/4" |
| RF325 | 11 way | 3/4" |
| RF325 | 12 way | 3/4" |
FF stainless steel AISI 304L manifolds with 3/4" male Euroconus outlets, with thermostatic screws and lockshield valves. Air discharge valve, drain ball valve, manifold's brackets and plugs 1", set of steel brackets.
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• G1/2 x G3/4 nipples
• thread: ISO228
