• Stainless steel expansion vessel support for heating
Stainless steel expansion vessel support for heating close left right

Stainless steel expansion vessel support for heating

Code: V21-014712

Material: stainless steel

Place of origin: zhejiang, China

Product Description

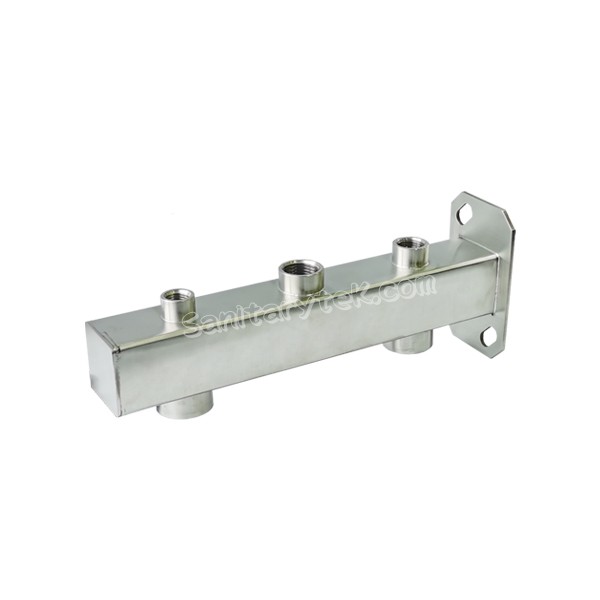

Stainless Steel Expansion Vessel Support for Heating


Expansion vessel support manufactured in stainless steel. It has a 3/4″F lower connection to the hydraulic circuit and a 3/4″F connection to the expansion vessel. It includes female connections: a 1/4″ thread for pressure gauge, a 1/2″ thread for safety valve, and a 1/2″ thread for an automatic air vent. Total length: 250 mm.

• Material: stainless steel
• Support has 2 1/2" female threads at the top to house. on one side, the automatic air vent, and its corresponding check valve and, on the other side, the safety valve. It also has another 1/4" female thread at the top to house the pressure gauge. The lower part has two 3/4" female threads to house.
• Expansion vessel: 250x40x40 mm
• Suitable for connection to heating
• Thread: ISO228

Code Size Length
V21-014712 3/4"F 250 mm
