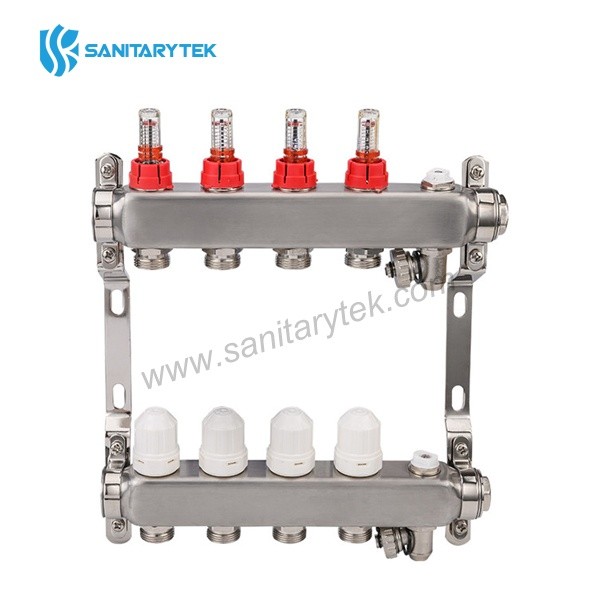

Stainless steel manifold set with thermostatic valve and flow meter, air vent, drain valve
Code: RF329
Material: stainless steel
Place of origin: Ningbo, China
Product Description
Stainless Steel Manifold Set with Thermostatic Valve and Flow Meter
| Code | Manifold 1" | Outlet |
| RF329 | 2 way | 3/4" |
| RF329 | 3 way | 3/4" |
| RF329 | 4 way | 3/4" |
| RF329 | 5 way | 3/4" |
| RF329 | 6 way | 3/4" |
| RF329 | 7 way | 3/4" |
| RF329 | 8 way | 3/4" |
| RF329 | 9 way | 3/4" |
| RF329 | 10 way | 3/4" |
| RF329 | 11 way | 3/4" |
| RF329 | 12 way | 3/4" |
Pre-assembled distribution manifold composed by:
- flow meters on supply bars regulating flow
- thermostatic valves on the return bars fitted with knobs for manual regulation with possibility of connecting thermoelectric head
- set of steel brackets
- G1/2 air vent valve
- G1/2 swivel drain valve
- G1 brass plug
- G1/2 x G3/4 nipple
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• thread: ISO228
