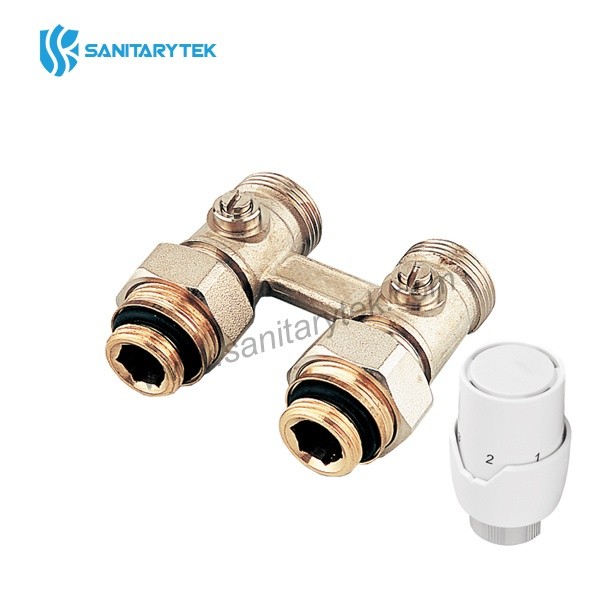

Thermostatic set for bottom connected radiator, straight
Code: V21-010K300
Material: Brass
Finish: nickel plated
Place of origin: Ningbo,China
Product Description
Thermostatic Kit for Radiator, Straight
Elements of the set: thermostatic head with M30x1,5 connection (suitable for Heimeier type thermostatic inserts), universal straight connection valve.
• connections 3/4” M x 1/2” M – reduction nipples included• conical sealing
• ball shut-off valves
• nominal pressure: 1,0 MPa (10 bar)
• maximum ambient temperature: 50°C
• adjustment scale: 0-5
• temperature adjustment range: 0-28°C
• antifreeze protection: ~ 6°C
• Body in nickel-plated brass
• Threads: ISO 228
| Code | Size | Head connection |
| V21-010K300 | 1/2"x3/4" | M30x1,5 |
