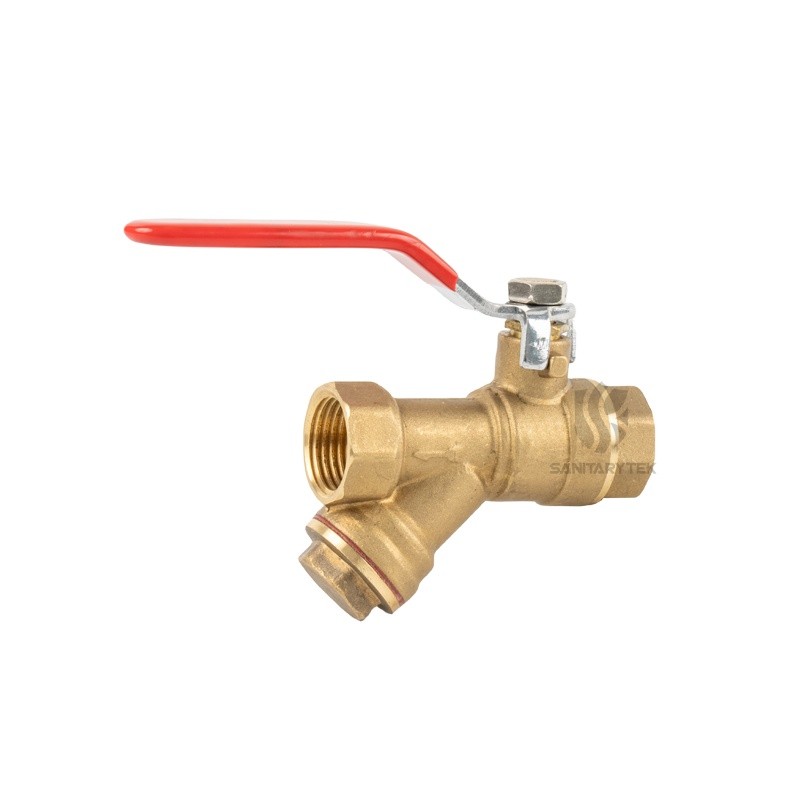

• Y-type brass strainer filter ball valve, red steel flat handle
Y-type brass strainer filter ball valve, red steel flat handle close left right

Y-type brass strainer filter ball valve, red steel flat handle

Code: V20-017

Material: brass

Finish: yellow brass

Place of origin: Ningbo, China

Sample: Support

Product Description

Thread Y Type Brass Strainer Filter Ball Valve


The Y strainer with metal mesh was designed to prevent solid impurities from entering pipes where they can build up and thus reduce the flow. It is normally installed on the inlet to the water supply line before the check valves and the pressure reducers, and it can be easily maintained by unscrewing the blind cap.

• Body in natural brass
• female-female
• with gland, PTFE seat
• Steel flat handle, available color red or blue
• filter material: stainless steel
• Nominal pressure: 16 bar
• maximum working temperature: 110°C
• Working media: water
• Finish: natural brass or nickel-plated
• Thread: ISO228

Code Size Finish
V20-017 1/2" yellow brass
V20-017 3/4" yellow brass
V20-017 1" yellow brass
