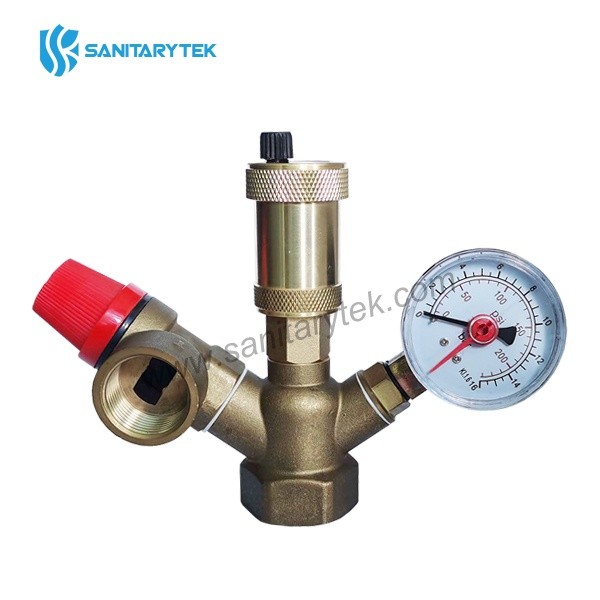

Boiler safety group
Code: V21-014701
Material: brass
Color: yellow brass
Place of origin: zhejiang, China
Product Description
Boiler Safety Group
Safety group - is used to ensure and control the required pressure in the combustion or hot water supply system and release it when the maximum limit is exceeded.
• Finishing: yellow brass
• Working temperatures: 0 °C - +110 °C
• Max. working pressure: 10 bar
• Safety valve 1/2"x3/4" 3 bar, 6 bar
• Automatic air vent with shut-off valve 3/8"
• Pressure gauge BSP1/4"
• Connection: 1"
• Thread: ISO228
Code | Size | Safety valve |
V21-014701 | G1" | 3 bar |
V21-014701 | G1" | 6 bar |
