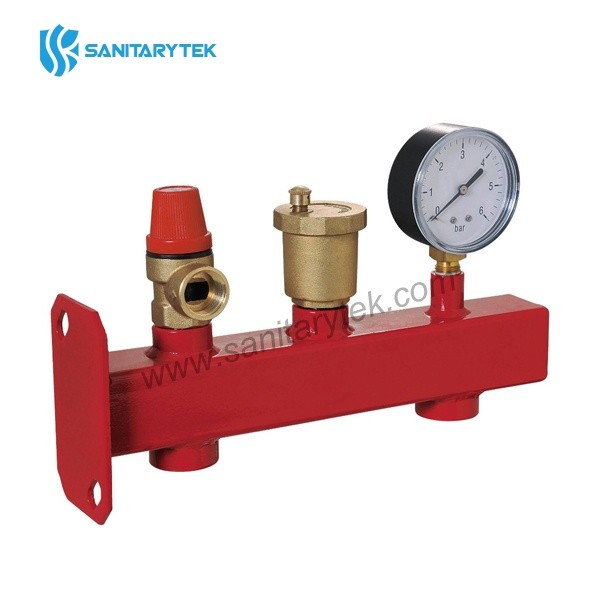

Steel safety group for central heating
Code: V21-014704
Material: steel
Place of origin: zhejiang, China
Product Description
Steel safety group for central heating, 250x40x40mm
The 3 bar safety bar for central heating is made of steel. It is designed for installation in home heating systems. Its task is to protect the installation against pressure increase caused by the increase in water temperature in the installation. The beam is equipped with an automatic air vent with a drain valve, a 3 bar safety valve, a pressure gauge and a set of mounting pins. Additionally, in the lower part of the beam, there are connections for the expansion vessel and power supply from the boiler.
• Maximum working temperature: 95 ° C
• Max. working pressure: 6 bar
• Safety valve 1/2"x3/4" 3bar
• Automatic air vent 1/2"
• Pressure gauge 0-6 bar, Ø63, G1/4"
• Red epoxy painted steel support
• Expansion vessel: 250x40x40 mm
• Thread: ISO228
Code | Size | Safety valve |
V21-014704 | 3/4" | 3 bar |
