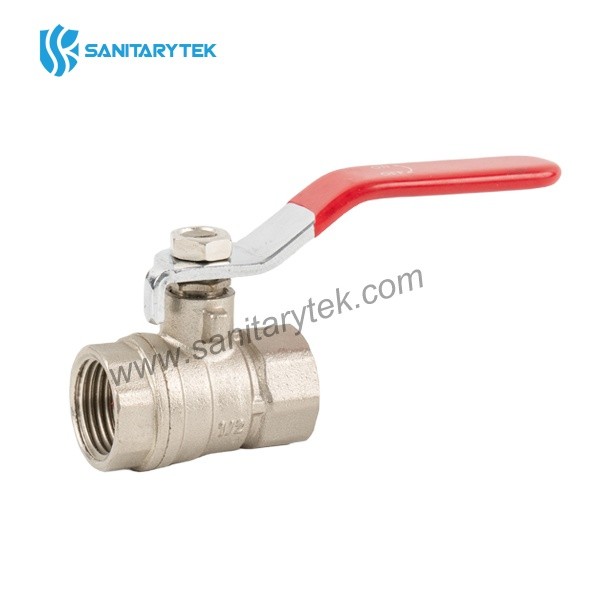

Brass ball valve female/female with lever handle
Code: V20-009
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
• Body in nickel plated brass• female-female
• with gland and packing nut, PTFE seat
• Lever handle in red steel flat (Available aluminium lever)
• nominal operating pressure: 20 bar
• working temperatures : -10°C to +100°C
• working media: water
• Thread: ISO228
• This ball valve with internal threading uses a metal ball with a hole bored through the center, sandwiched between two seats to control flow. Can be used in residential, commercial plumbing, water wells and many other applications.
| Code | Size |
| V20-009 | 1/2" |
| V20-009 | 3/4" |
| V20-009 | 1" |
| V20-009 | 1.1/4" |
| V20-009 | 1.1/2" |
| V20-009 | 2" |
