• Steel boiler safety group, galvanised
Steel boiler safety group, galvanised close left right

Steel boiler safety group, galvanised

Code: V21-014708V

Material: steel

Color: red

Place of origin: zhejiang, China

Product Description

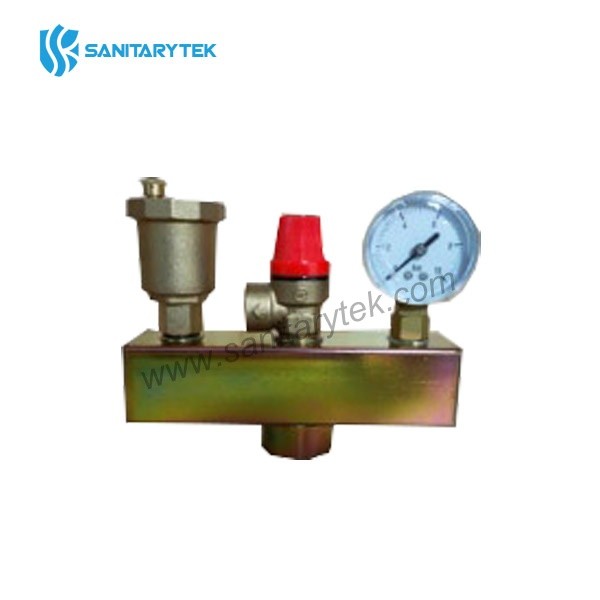

Steel Boiler Safety Group - galvanised, 157x40x40mm


The safety group set is a system protecting the installation against dangerous pressure increase caused by water temperature increase and its thermal expansion.

• Body in steel
• steel support in galvanised
• Expansion vessel: 157x40x40 mm
• Maximum working temperature: 95 ° C
• Max. working pressure: 6 bar
• Safety valve 1/2"x3/4" 3bar
• Automatic air vent 3/8"
• Pressure gauge 0-6 bar, G1/4"
• Thread: ISO228

Code Size Safety valve
V21-014708V 1" 3 bar
