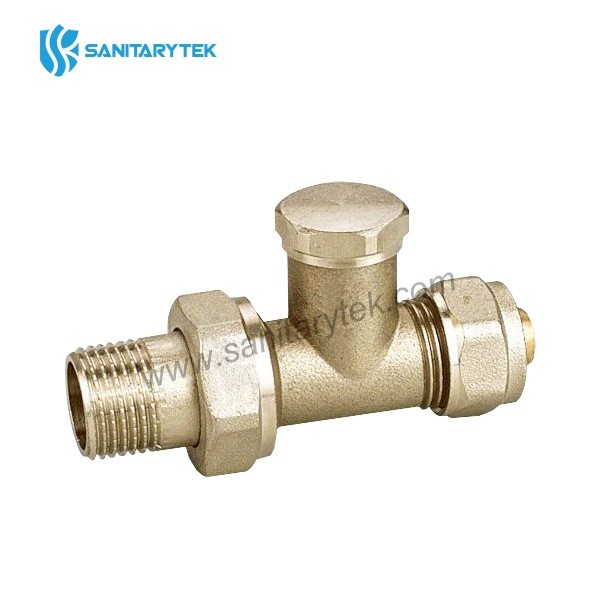

Straight return radiator valve with screw connection for multilayer pipes
Code: V21-213
Material: Brass
Finish: nickel plated
Place of origin: Ningbo,China
Product Description
Brass straight radiator lockshield valve with PEX adaptor for multilayer pipe
High-quality radiator valves with a PEX adaptor for connecting a heating device to the installation. Radiator and shut-off valves are available in straight and angular versions. Made of brass. All valves are sandblasted and then nickel-plated. Straight locksheild valve to connect radiator to PEX pipe system. Radiator valve has got 1/2 Inch BSP connection on one end and PEX compression connection on the other end.
• body in nickel-plated brass• adaptor Ø 16x2.0 PEX compression connection
• maximum working pressure: 1.0 Mpa (10 bar).
• working temperatures : 0°C to +90°C
• working medium: water
• Threads: ISO 228
Code | Size |
V21-213 | 1/2"x16/2.0 |
